51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Make sure that body is not damaged.

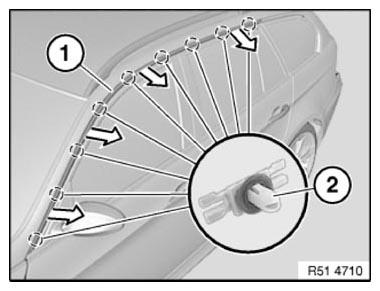

Open doors and starting from the front, use special tool 00 9 317 to remove trim strip (1) from clips (2).
Installation note:
To avoid leaks and noises, check all clamps (2) for visible damage.
Replace faulty clamps (2).
Align clamps (2) on body and fit trim strip (1).
Installation note:
Gaskets (1) must not be damaged.
IMPORTANT:
- Carry trim strip by its middle section only (risk of damage)
- Perform installation work with a second person helping
- Prepositioning of trim strip
- Ensure gutter strip runs parallel to side frame (risk of breakage)
