51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

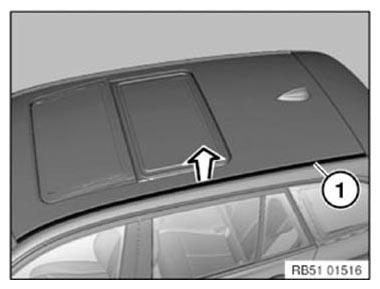

Lever out trim strip (1) with special tool 00 9 321 starting at the front.

Unclip trim strip (1) in direction of arrow.

Fig 1: Removing Roof Frame Trim Strip

G10153292

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

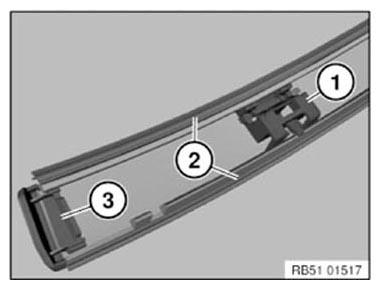

Clips (1), gaskets (2) and end caps (3) must not be damaged or missing.

The positions of the clips (1) are determined with the tabs on the body.

Place the trim strip onto the roof loosely and check if clips (1) are correctly positioned with the tabs on the roof.

Replacement:

Do not attach clips (1) until the trim strip has been painted.

Fig 2: Trim Strip Clips, Gaskets And End Caps

G10153293

Courtesy of BMW OF NORTH AMERICA, INC.

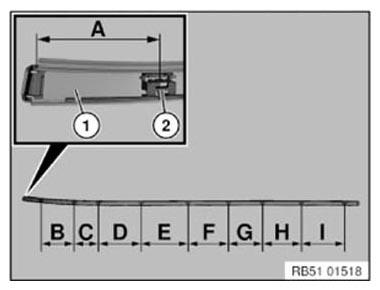

Mounting dimensions for clips:

Dimension (A) from outer edge of trim strip (1) (not outer edge of end cap) to center of clip (2).

Dimensions (B to I) refer to the center of the clips (2).

	A	B	C	D	E	F	G	R	I
Dimensions in mm	91	179	133	237	262	225	190	214	236

Fig 3: Clips Mounting Dimensions

G10153294

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

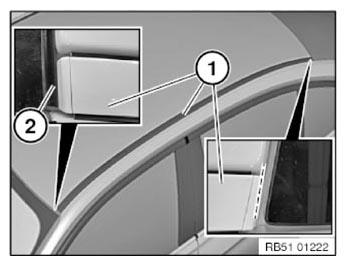

Trim strip (1) must be flush with roof outer skin (±1.2 mm) at rear.

Gasket (2) must be correctly positioned against trim strip (1).

Fig 4: Trim Strip And Gasket

G10096931

Courtesy of BMW OF NORTH AMERICA, INC.
