51 12 828 Removing and installing/replacing guide for the bumper panel, rear left or right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM

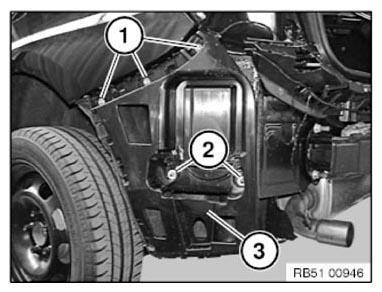

Release screws (1).
Tightening torque: 51 12 3AZ .
Unscrew nuts (2).
Tightening torque: 51 12 3AZ .
Remove guide (3).

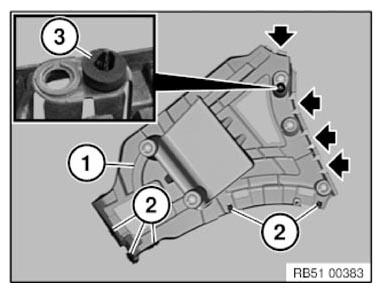

Installation note:
Latch mechanisms (2) and gasket (3) of the guide (1) must not be damaged or missing.
