51 12 825 Removing and installing/replacing guide for rear center bumper panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE rear bumper trim

Feed out cable (1).

Unscrew nuts (2).

Tightening torque: 51 12 2AZ .

Remove guide (3).

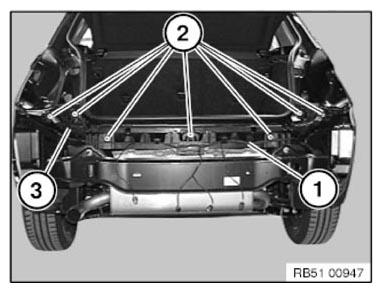

Fig 1: Bumper Panel, Guide, Nut And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) of guide (2) must not be damaged or missing.

Fig 2: Bumper Panel Latch Mechanisms And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
