51 16 383 Removing and installing/replacing damper for glove box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary work:

Remove RIGHT GLOVE BOX

NOTE: For better illustration, the damper has already been disconnected from the retaining bracket.

Unclip damper (1) from retaining bracket (2) and slide back in direction of arrow.

Fig 1: Removing Damper From Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

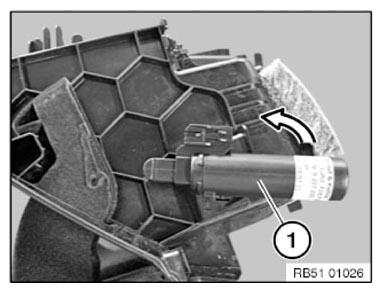

Turn damper (1) approx. 90° in direction of arrow and disconnect.

Fig 2: Turning Damper

Courtesy of BMW OF NORTH AMERICA, INC.
