51 16 142 Removing and installing (replacing) insert in center armrest storage compartment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020

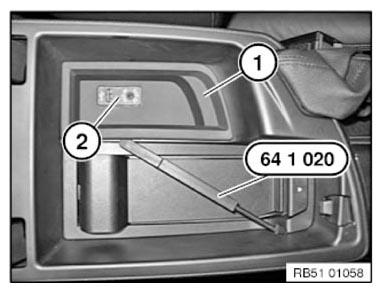

Unclip insert (1) with special tool 64 1 020 in upward direction.
Unlock and disconnect the plug connections of the connecting socket (2).
Remove insert (1).
Replacement:
Modify CONNECTING SOCKET (2) .
Installation note:

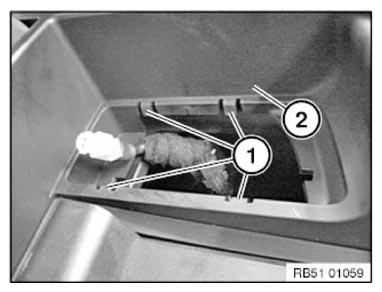

Catches (1) on storage compartment (2) and corresponding counter-pieces on the insert must not be damaged or missing.
