51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) on bottom of trim panel (2).

Unclip the trim panel (2) along the mark (3) to the outside.

Installation note:

If applicable, replace faulty screws (1) and corresponding mountings.

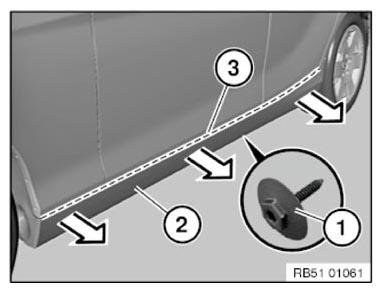

Fig 1: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms on holder (1) and trim panel (2) must not be damaged.

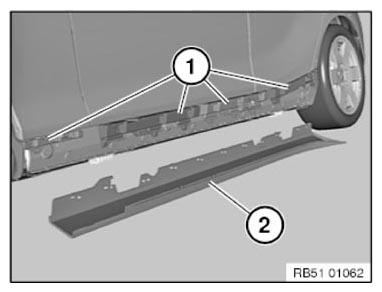

Fig 2: Trim Panel And Latch Mechanisms Holder

Courtesy of BMW OF NORTH AMERICA, INC.
