51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT WHEEL

NOTE: For a better view surrounding components have been omitted.

Release screws (1).

Feed out wheel arch cover (2).

Installation note:

Ensure wheel arch cover (2) and cooling air routing are correctly fitted.

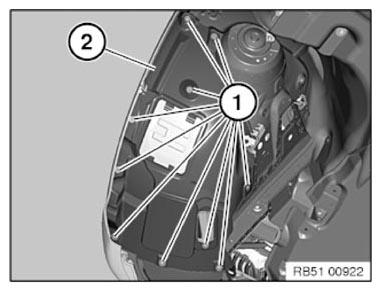

Fig 1: Wheel Arch Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify lid (1) on wheel arch cover (2).

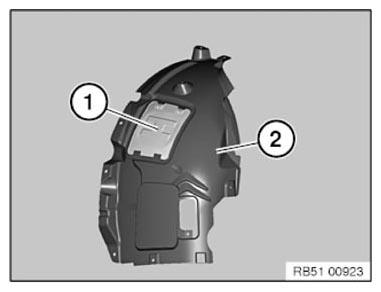

Fig 2: Wheel Arch Cover Lid

Courtesy of BMW OF NORTH AMERICA, INC.
