51 71 017 Removing and installing/replacing (left or right) underbody panelling
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

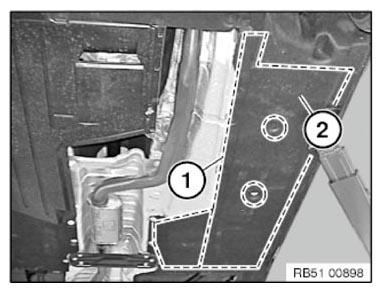

Graphic is only an example. There may be differences in specific details depending on engine version.
Release all screws along dashed line (1).
Tightening torque: 51 75 1AZ
Remove underbody panelling (2).
Installation note:
Make sure underbody panelling (2) is correctly seated.
