31 51 020 Replacing radial shaft seal for output shaft, right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary work:

REMOVE right output shaft.

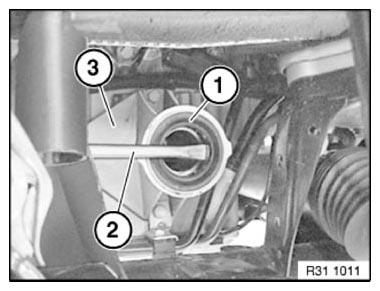

Lift out radial shaft seal (1) from the bearing support (3) with a screwdriver (2).

Fig 1: Removing Radial Shaft Seal From Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Protective sleeve (1) serves to protect the sealing lip of radial shaft seal (2) from being damaged when the output shaft is inserted into the bearing support.

Fig 2: Identifying Radial Shaft Seal And Protective Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

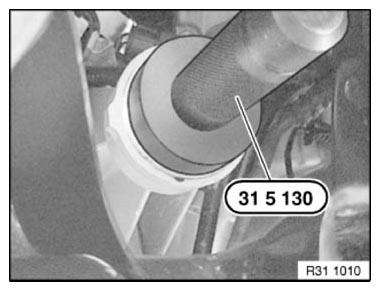

Drive in radial shaft seal with special tool 31 5 130 as far as it will go.

Fig 3: Installing Radial Shaft Seal Using Special Tool (31 5 130)

Courtesy of BMW OF NORTH AMERICA, INC.
