31 51 015 Replacing radial shaft seal for output shaft, left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary work:

REMOVE left output shaft.

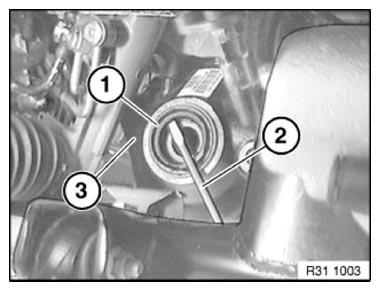

Lever radial shaft seal (1) with a screwdriver (2) out of front axle differential (3).

Fig 1: Removing Radial Shaft Seal Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Protective grommet (1) serves to protect the sealing lips of radial shaft seal (2) from being damaged when the output shaft is inserted into the front axle differential.

Fig 2: Identifying Radial Shaft Seal And Protective Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Drive in radial shaft seal with special tool 31 5 130 as far as it will go.

Fig 3: Installing Radial Shaft Seal With Special Tool (31 5 130)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check FRONT AXLE GEARBOX OIL LEVEL , correct if necessary.
