61 62 030 Removing and installing/replacing wiper arm on rear window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Fold up protective cap (1) in direction of arrow.

If necessary, spread internal fixtures (2) as illustrated and remove protective cap (1).

Fig 1: Folding Up Protective Cap

G06979997

Courtesy of BMW OF NORTH AMERICA, INC.

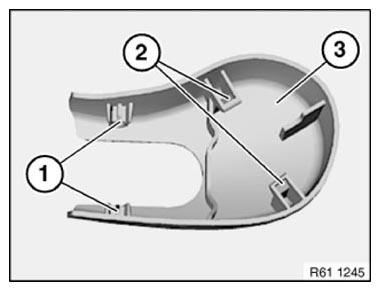

Fixture (1) and latch mechanisms (2) of protective cap (3) must not be damaged.

Fig 2: Identifying Fixture, Latch Mechanisms And Protective Cap

G10168179

Courtesy of BMW OF NORTH AMERICA, INC.

Erect wiper arm (1).

Release nut (2) and detach wiper arm (1).

Tightening torque 61 62 1AZ .

Fig 3: Identifying Wiper Arm And Nut

G06979999

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Wiper motor must be in its end position.

Set dimension (A) to between middle of wiper arm and rear window edge.

Vehicle series:	Dimension (A)
F11	30 mm
F31	40 mm

Fig 4: Setting Dimension Between Middle Of Wiper Arm And Rear Window Edge

G06980000

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut of wiper arm with specified torque.

Tightening torque 61 62 1AZ

Check wiper blade for damage and replace if necessary.
