72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

REMOVE left backrest for rear seat
Remove REAR PANEL ON REAR SEAT BACKREST, LEFT
Remove REAR SEAT

Release screw.

Grip in the marked area between the seat belt finisher strip and backrest cover.

Pull and remove seat belt finisher strip upwards in direction of arrow.

Fig 1: Removing Seat Belt Finisher Strip

G10167593

Courtesy of BMW OF NORTH AMERICA, INC.

Feed seat belt strap out of seat belt finisher strip.

Fig 2: Removing Seat Belt Strap Out Of Seat Belt Finisher Strip

G06979528

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown here without backrest cover and upholstery for a better overview.

Move backrest cover with upholstery upwards.

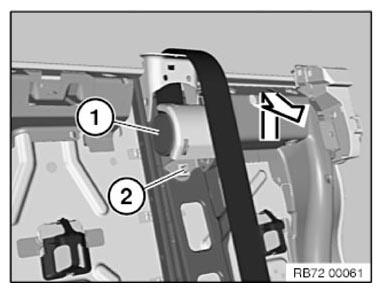

Release screw (1) on rear side of backrest.

Remove inertia reel (2) from back rest frame in direction of arrow.

Fig 3: Removing Inertia Reel From Back Rest

G10168527

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace microencapsulated screws.

Tightening torque 72 12 21AZ .

Automatic reel is coded against incorrect installation.
