72 12 000 Removing and installing or replacing airbag module on passenger's side
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
WARNING:
Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Necessary preliminary tasks:
- Remove DASHBOARD

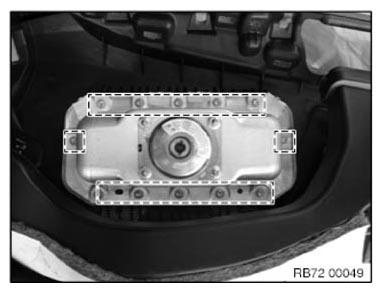

Release all screws on airbag module.
Tightening torque 72 12 01AZ .
Remove airbag module from dashboard.
