11 28 020 Removing and installing/replacing the belt tensioner for the alternator (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 3 340

Necessary preliminary tasks:

Remove ALTERNATOR DRIVE BELT .

Release screws (1).

Remove belt tensioner (2) with roller and deflecting element.

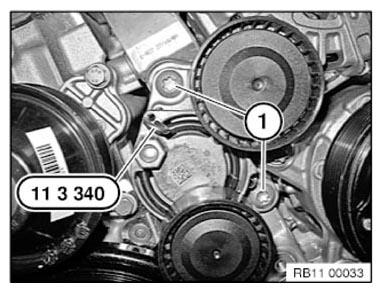

Fig 1: Removing Belt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

If a tensioning device is no longer needed, the special tool 11 3 340 must be removed using a vice.
