11 53 742 Removing and installing/renewing the coolant pipe (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE PLENUM .

Release screws (1).

Tightening torque: 11 12 6AZ .

Remove connecting branches.

Replace gasket.

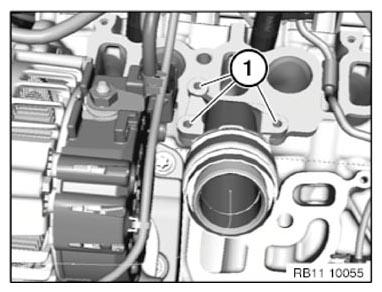

Fig 1: Coolant Pipe Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT .

Check cooling system for tightness.
