11 65 020 Removing and installing/replacing exhaust turbocharger (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 6 050

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

IMPORTANT: For exhaust gas turbocharger damage:
BE SURE TO FOLLOW THE INSTRUCTIONS .

Pressure pipes
Charge air cooler
Intake plenum

must be checked for foreign bodies, damage and correct function.

Necessary preliminary tasks:

REMOVE ACOUSTIC COVERS .
Loosen V-Band washer DIESEL PARTICLE FILTER (diesel particle filter does not have to be removed).
Release PRESSURE PIPE at right from exhaust turbocharger and set aside.
Remove clean air pipe . See 13 71 150 REMOVING CLEAN AIR PIPE (N47) or 13 71 150 REMOVING CLEAN AIR PIPE (N47 WITH SCR) .

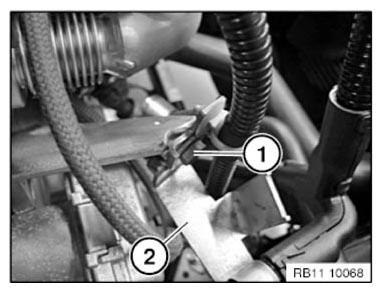

Fig 1: Exhaust Pipe, Banjo Bolt And Screw
Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unfasten banjo bolt (2).

13 62 7AZ .

Place exhaust pipe (3) to one side.

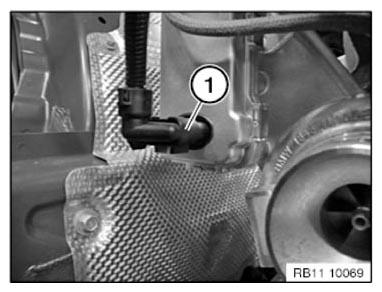

Remove heat shield toward top.

Release screw (1).

To remove heat shield, release connectors of oxygen sensors from support.

Fig 2: Exhaust Pipe And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Use steel sealing rings (1) only.
Risk of damage!

Installation note:

Replace steel sealing rings (1).

Fig 3: Steel Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1).

NOTE: Catch escaping engine oil in a suitable container.

Disconnect line (2).

Tightening torque: 11 42 3AZ .

Installation note:

Clean sealing surfaces.

Fig 4: Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from exhaust turbocharger and take off holder (2 positive battery cables).

Fig 5: Releasing Screw From Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) from turbocharger adjustment.

Fig 6: Disconnecting Plug From Turbocharger Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (3).

Tightening torque: 11 00 7AZ .

Remove return line (2) from the removed exhaust turbocharger.

Release screws (1).

Installation note:

Replace gasket.

Fig 7: Return Line, Hose Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unfasten screws (2).

Remove bracket (3).

Fig 8: Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release bihexagonal bolts on exhaust turbocharger with special tool 11 6 050 .

Tightening torque: 11 65 1AZ .

Remove exhaust turbocharger upward.

Installation note:

Replace gasket.

Fig 9: Releasing Bihexagonal Bolts On Exhaust Turbocharger With Special Tool (11 6 050)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid damaging the threads and prevent exhaust turbocharger leaks, insert mounting bolts in 1/2 turns simultaneously.

NOTE: High-strength bolts are not magnetic and cannot be removed with a magnet.

Use gripper (2) to remove bihexagonal bolt (1).

Fig 10: Gripper And Bihexagonal Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

If the exhaust turbocharger is replaced, the engine oil pipe (2) must be modified.

Release banjo bolt (1).

Installation note:

Tightening torque: 11 42 3AZ .

Replace sealing rings.

Oil line (2) must run obliquely along the housing (see Fig 11).

Fig 11: Banjo Bolt And Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

IMPORTANT: Grease the thread on the exhaust turbocharger with the ASSEMBLY PASTE 4.2 .
To avoid damaging the threads and prevent exhaust turbocharger leakage, insert retaining screws in 1/2 turns simultaneously until they are flush.
Release all bolts again by a 90° turn.
Follow sequence of exhaust turbocharger screw connections:

Fasten V-band clip 18 31 1AZ .
exhaust turbocharger screw connection at the exhaust manifold 11 65 1AZ .
Crankcase holder on the exhaust turbocharger 11 00 2AZ .
