11 14 110 Removing and installing, sealing/replacing rear gear case cover (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Engines with surface sealant:
Application time of sealing bead max. 12 minutes.

Necessary preliminary tasks:

Remove ENGINE .
Remove FLYWHEEL .
Remove CYLINDER HEAD .
Removing OIL SUMP .

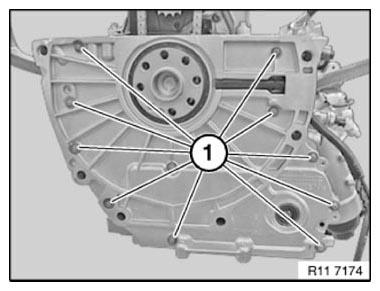

Release screws (1).

Fig 1: Gear Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen gear case cover with a screwdriver (1) in direction of arrow.

Fig 2: Loosening Gear Case Cover With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen gear case cover with a screwdriver (1) in direction of arrow.

Remove gear case cover.

Fig 3: Loosening Gear Case Cover With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket remnants from crankcase and gear case cover with special tool 11 4 470 .

Apply sealing bead (1) at marked points.

Installation note:

Application time of sealing bead (1) max. 12 minutes.

Position sealing bead (1) at marked point (see arrow) on outside on gear case cover.

Thickness of SEALING BEAD : 1.5 to 2.0 mm.

Fig 4: Gear Case Cover Sealing Bead Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolts (1).

Fig 5: Gear Case Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

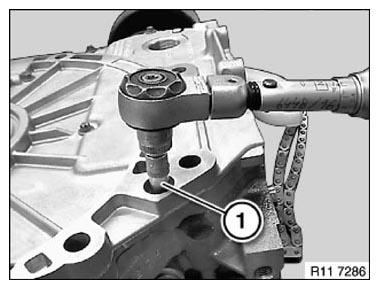

Secure special tool 00 9 120 with bolts (1).

Tightening torque: 11 14 2AZ .

Fig 6: Tightening Gear Case Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial shaft seal at front.

Assemble engine.

Procedure for replacing gear case cover.

Release screws (1).

Release bolt holding high pressure pump.

Fig 7: Gear Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket remnants from the crankcase with special tool 11 4 470 .

Apply sealing bead (1) at marked points.

Installation note:

Application time of sealing bead (1) max. 12 minutes.

Fig 8: Gear Case Cover Sealing Bead Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Position sealing bead (1) at marked point (see arrow) on inside on gear case cover.

Thickness of SEALING BEAD : 1.5 to 2.0 mm.

Preassemble special tool 11 8 815 on crankshaft.

Install accelerator pedal module ring (1) with gear case cover dry and without lubricant.

Fig 9: Installing Accelerator Pedal Module Ring With Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolts (1).

Fig 10: Gear Case Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 00 9 120 with bolts (1).

Tightening torque: 11 14 2AZ .

Fig 11: Tightening Gear Case Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
