11 21 500 Replacing crankshaft (N47) as from 6/2013

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Replace main and connecting rod bolts.
There must be no oil in the blind holes (risk of cracking) .
Do not wash off bolt coating.
Incorrect assembly of the bearing caps will result in damage to the crankcase.
It is necessary to remove the counterbalance shafts (AGW) in order to remove the crankshaft.
To properly adjust the counterbalance shafts, a new, coated intermediate gear must always be fitted.

Necessary preliminary tasks:

Remove engine.
Mount engine on assembly stand .
Remove cylinder head.
Remove coolant pump.
Remove oil pump.
Remove end cover at rear.
Remove both TIMING CHAINS .
Remove all pistons.

Check crankshaft side clearance.

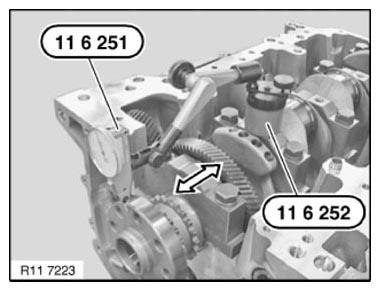

Fit special tool 11 6 250 .

SIDE CLEARANCE .

If the permitted side clearance is exceeded:

Check crankshaft and guide bearing shells.
Replace worn component.

Fig 1: Checking Crankshaft And Guide Bearing Shells
Courtesy of BMW OF NORTH AMERICA, INC.

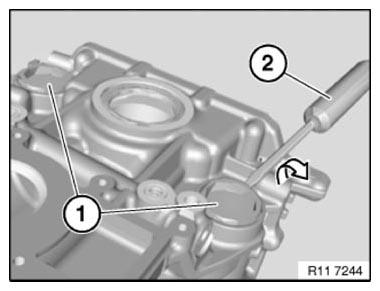

Remove sealing caps (1) with a suitable tool (2).

Installation note:

Replace sealing cap with O-ring.

Fig 2: Removing Sealing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

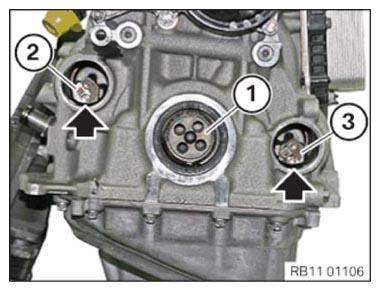

Turn crankshaft (1) to top dead center until the counterbalance shafts (2 and 3) are facing down with the locating bore (see arrow).

Fig 3: Crankshaft Counterbalance Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

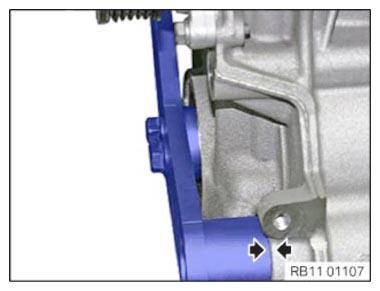

Turn crankshaft until special tool 2 288 054 engages in the counterbalance shaft.

See arrows.

Fig 4: Turning Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

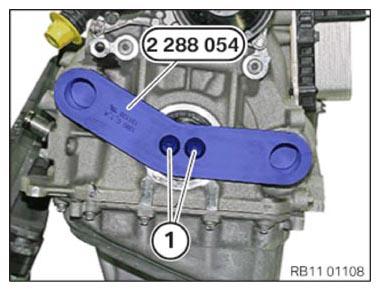

Secure special tool 2 288 054 to the crankshaft with screws (1).

Fig 5: Securing Special Tool (2 288 054) To Crankshaft With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

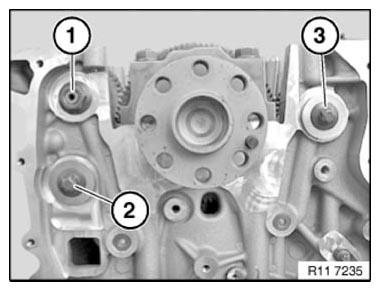

Slacken nut (1).

Tightening torque: 11 27 2AZ .

Undo screws (2 and 3)

Tightening torque: 11 27 1AZ

Fig 6: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nut from intermediate gearwheel (1).

Remove intermediate gearwheel (1).

NOTE: The gear is pressed onto the counterbalance shaft with a taper and can only be released with special tool 11 8 870 .
Once the gear has been released from the counterbalance shaft, special tool 11 8 870 can be unscrewed again by hand.

Fig 7: Removing Intermediate Gearwheel

Courtesy of BMW OF NORTH AMERICA, INC.

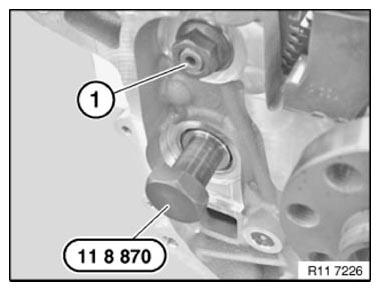

Screw special tool 11 8 870 into counterbalance shaft gear, thereby releasing counterbalance shafts from the gears.

IMPORTANT: Risk of damage! on crankcase.
Use special tool 00 2 300 to move engine to vertical position.

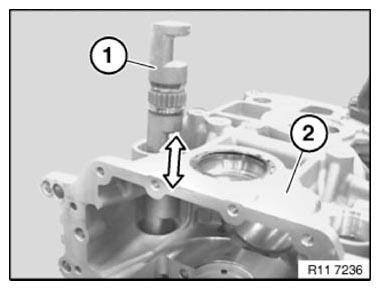

Remove counterbalance shaft (1) in upward direction of arrow from crankcase (2).

Fig 8: Removing Counterbalance Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with crankshaft removed for clearer illustration.

IMPORTANT: Danger of mixing up needle bearings.
Needle bearings have different diameters.

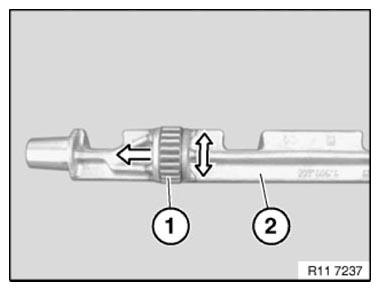

Fig 9: Releasing Needle Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Release needle bearing (1) in direction of arrow.

Remove released needle bearing (1) from counterbalance shaft (2) in direction of arrow.

Check counterbalance shaft (2) for wear at the bearing position and replace if necessary.

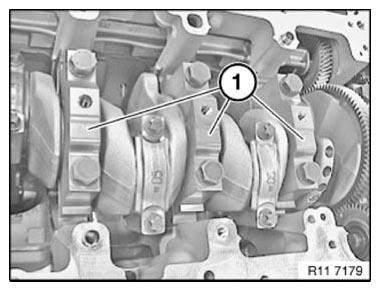

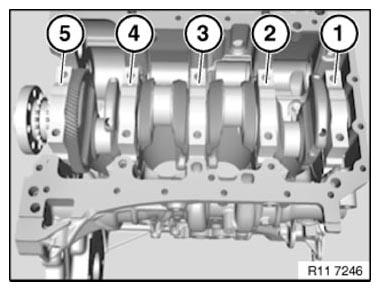

NOTE: Bearing caps (1) 1...5 are marked on the exhaust side.
Bearing cap 3 is installed as a thrust bearing.

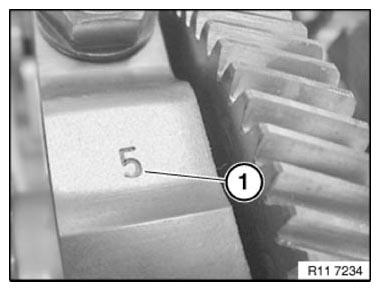

NOTE: Graphic at bearing seat number 5.

Fig 10: Bearing Caps 5 Mark On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

Release main bearing screw connection of main bearing cap (1).

Remove main bearing cap 1...5.

Fig 11: Main Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: With the assistance of a second person, remove crankshaft and carefully place to one side.
Pay attention to oil hole in bearing shell.
Pay attention to installation position of crankshaft main bearing shells.

Oil bearing shell.

Install crankshaft.

Fit bearing caps 1 to 5 so that the ID codes always point to the exhaust side.

Both locating grooves of bearing shells in crankcase and on bearing cap must be mounted on one side.

IMPORTANT: Do not fit bearing cap in incorrect position.
Risk of damage to moulding on crankcase.

Align bearing cap exactly.

Fig 12: Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Fit main bearing bolts.

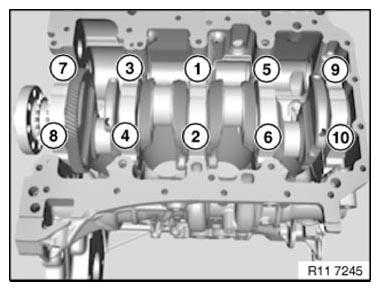

Tighten main bearing bolts in sequence (1 to 10) (observe tightening specifications).

Tightening torque: 11 11 1AZ .

Fig 13: Main Bearing Cap Bolts Tightening/Loosening Sequence (N47 D20 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

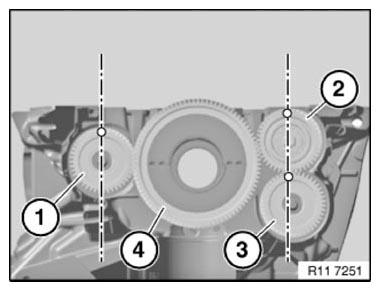

Schematic representation of the differential bevel and intermediate gears.

IMPORTANT: To adjust the counterbalance shafts, it is essential to fit a new coated intermediate gearwheel (2).

All marks on the drive gears (1 and 3) and intermediate gearwheel (2) must point vertically to the oil sump sealing surface (upwards).

Fig 14: Marks On Drive Gears And Intermediate Gearwheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To facilitate installation of counterbalance shafts, rotate engine with special tool 00 2 300 to a convenient working position.

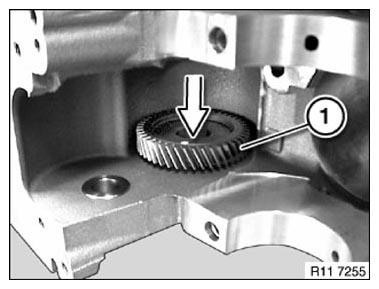

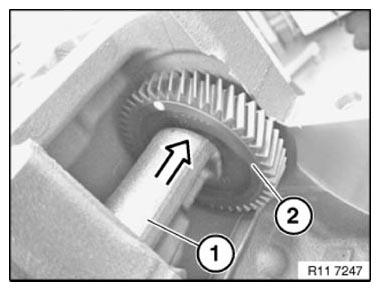

Fit gear (1) for right counterbalance shaft in direction of arrow.

Marks on drive gear counterbalance shaft (1) must point vertically to oil sump sealing surface (upwards).

NOTE: For better graphic without crankshaft.

Fig 15: Fitting Right Counterbalance Shaft Gear

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up gears.
Pay attention to inclination of tooth flanks.

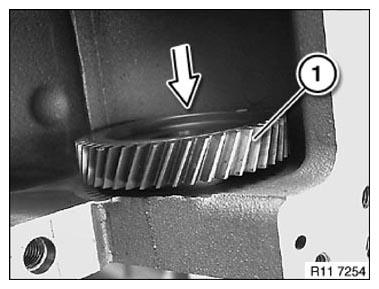

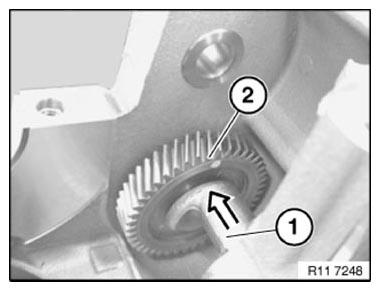

Fit gear (1) for left counterbalance shaft in direction of arrow.

Marking on drive gear (1) must point vertically to oil pan sealing surface (upwards).

NOTE: For better graphic without crankshaft.

Fig 16: Fitting Left Counterbalance Shaft Gear

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up gears.
Pay attention to inclination of tooth flanks.

Insert counterbalance shafts (1) in direction of arrow in crankcase (2).

NOTE: For better graphic without crankshaft.

Fig 17: Inserting Counterbalance Shafts In Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not drop counterbalance shafts into the bearing positions.

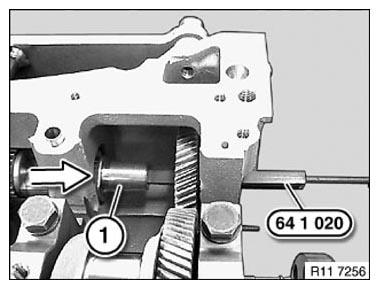

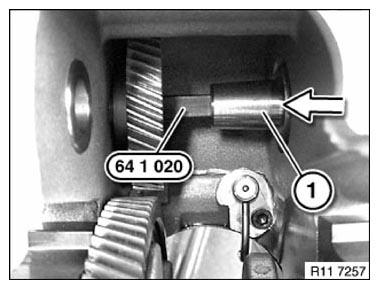

Insert special tool 64 1 020 or a suitable tool through the gear into the counterbalance shaft.

Carefully insert counterbalance shaft (1) into gear in direction of arrow.

Fig 18: Inserting Special Tool (64 1 020) And Gear Into Counterbalance Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Position counterbalance shaft (1) in direction of arrow in gear (2).

NOTE: For better graphic without crankshaft.

Fig 19: Positioning Counterbalance Shaft In Gear

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not drop counterbalance shafts into the bearing positions.

Insert special tool 64 1 020 or a suitable tool through the gear into the counterbalance shaft.

Carefully insert counterbalance shaft (1) into gear in direction of arrow.

Fig 20: Inserting Special Tool (64 1 020) And Gear Into Counterbalance Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Position counterbalance shaft (1) in direction of arrow in gear (2).

NOTE: For better graphic without crankshaft.

Fig 21: Positioning Counterbalance Shaft In Gear

Courtesy of BMW OF NORTH AMERICA, INC.

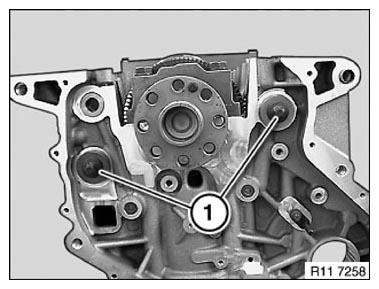

Screw both bolts (1) into the counterbalance shafts on the left and right.

Do not tighten both bolts otherwise the counterbalance shafts may jam and it will no longer be possible to position them in the next operation.

The balance weights of the counterbalance shafts must point to the oil sump. For this purpose, the engine must be moved into the normal position with special tool 00 2 300 .

Fig 22: Counterbalance Shafts Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

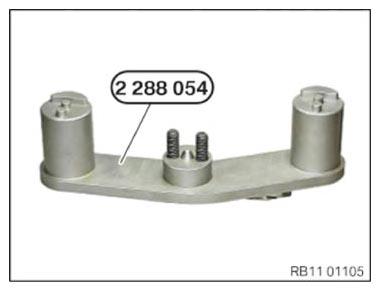

Prepare special tool 2 288 054 .

Fig 23: Special Tool (2 288 054)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust crankshaft (1) in first cylinder top dead center.

Turn counterbalance shafts (2 and 3) to installation position (see arrows).

Both counterbalance shafts together with the balance weights must now face downwards towards the oil sump.

Fig 24: Crankshaft Counterbalance Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

Position both counterbalance shafts.

Position special tool 2 288 054 so that there is no gap.

Fig 25: Positioning Both Counterbalance Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 2 288 054 into the crankshaft with 20 Nm with screws (1).

The crankshaft and counterbalance shafts are now positioned.

Fig 26: Securing Special Tool (2 288 054) To Crankshaft With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic representation of the differential bevel and intermediate gears.

All marks on the drive gears (1 and 3) and intermediate gearwheel (2) must point vertically to the oil sump sealing surface (upwards).

Fig 27: Marks On Drive Gears And Intermediate Gearwheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The gear must be loose on the right-hand counterbalance shaft otherwise it will not be possible to install the intermediate gearwheel.

Install new intermediate gearwheel with coating.

Fig 28: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install intermediate gearwheel.

Secure bolt for counterbalance shafts (2 and 3) using special tool 00 9 120 .

Tightening torque: 11 27 1AZ .

IMPORTANT: Before the intermediate gear (2) is secured, the intermediate gear (2) must be pressed hand-tight onto the gearing of the crankshaft (4) and counterbalance shaft (3) until zero-lash is achieved in both gears.

Fig 29: Marks On Drive Gears And Intermediate Gearwheel

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

Tightening torque: 11 27 2AZ .

Fig 30: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check SIDE CLEARANCE .

Fig 31: Checking Crankshaft And Guide Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
