11 31 051 Replacing timing chain (N20, N26)

Special tools required:

• 11 4 120
• 11 9 260
• 11 0 300
• 11 8 180
• 2 222 742
• 83 30 2 212 831
• 2 212 825

Necessary preliminary work:

• Remove CYLINDER HEAD COVER .
• Remove all SPARK PLUGS .
• Remove VIBRATION ABSORBER .
• Remove CRANKSHAFT SEAL  at front.
• Check TIMING .
• Removing oil sump  . See 11 13 000 REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N20, N26)  or 11 13 000 REMOVING AND FITTING, SEALING OR REPLACING THE OIL SUMP (N20 ALL-WHEEL DRIVE VEHICLE) .

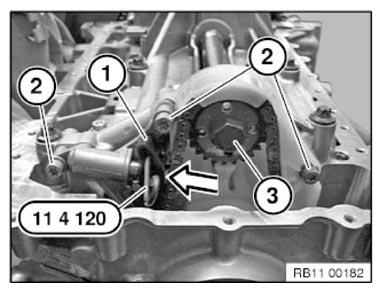

Push back the chain tensioner with the tensioning rail (1).

Secure chain tensioner using special tool 11 4 120 .

Fig 1: Securing Chain Tensioner Using Special Tool (11 4 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Engine removed:

Block crankshaft at flywheel with special tool 11 9 260 .

Fig 2: Special Tool (11 9 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual gearbox:

Attach special tool 11 8 180 to manual transmission with existing transmission bolts (1).

Block crankshaft in direction of arrow with special tool.

Fig 3: Attaching Special Tool (11 8 180) To Manual Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Block crankshaft with special tool 2 222 742 .

Feed in special tool, slide screw forward and tighten.

Fig 4: Special Tool (2 222 742)

Courtesy of BMW OF NORTH AMERICA, INC.

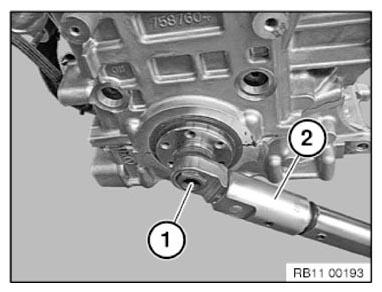

Release central bolt (1).

Tightening torque: 11 21 1AZ .

Fig 5: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Order number: 83 30 2 212 831

Fig 6: Removing Camshaft Adjusters Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CHAIN TENSIONER .

Screw in vibration absorber screws (1).

Pull out hub (2) on crankshaft forward in direction of arrow.

Fig 7: Pulling Crankshaft Hub

Courtesy of BMW OF NORTH AMERICA, INC.

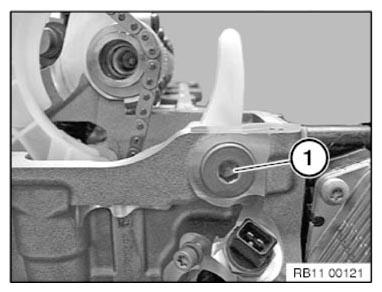

Open screw plug (1).

Tightening torque: 11 31 8AZ .

Fig 8: Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

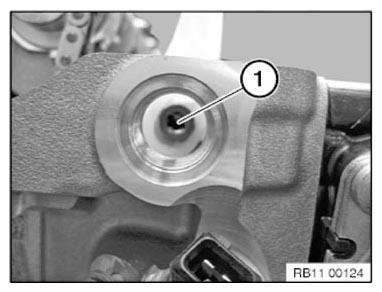

Release bearing journal (1) from timing chain module on cylinder head.

Tightening torque: 11 31 6AZ .

Fig 9: Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw plugs (1 and 2).

Tightening torque: 11 11 7AZ .

Fig 10: Screw Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1) on left and right of timing chain module for timing chain on crankcase.

Tightening torque: 11 31 5AZ .

Fig 11: Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) from timing chain module on cylinder head.

Tightening torque: 11 31 4AZ .

Remove chain module with timing chain and camshaft sprocket upwards.

Fig 12: Timing Chain Module Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

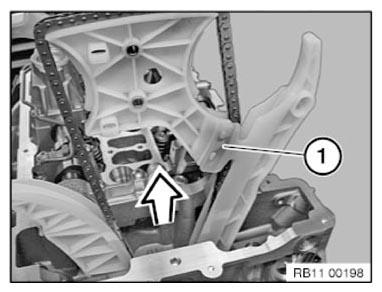

Remove timing chain module (1) upward.

Fig 13: Removing Timing Chain Module

Courtesy of BMW OF NORTH AMERICA, INC.

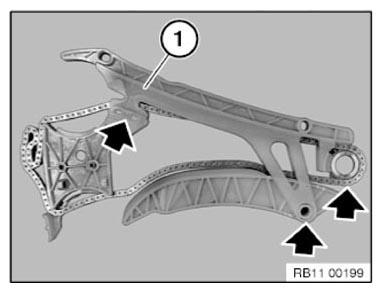

Fig 14: Sprocket Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Pull timing chain upwards until camshaft sprocket engages chain guide (1).

Install timing chain and camshaft sprocket in this position.

Installation note:

Permanently hold timing chain under tension. Timing chain may jam on chain guide (1).

Fig 15: Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

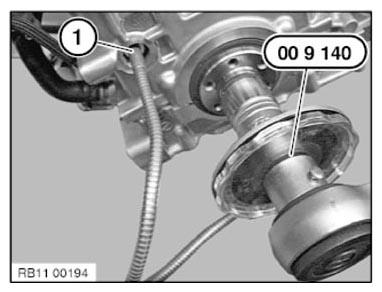

Loosen sealing cap using a screwdriver.

Fig 16: Loosening Sealing Cap Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn engine at central bolt until special tool 2 212 825 can be positioned in counterbalance shaft.

Secure special tool 2 212 825 to oil pump housing with screw (1).

Fig 17: Securing Special Tool (2 212 825) On Oil Pump Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Fit hub and central bolt (1).

Fig 18: Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 4 120 .

Fig 19: Removing Special Tool (11 4 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) with hub for crankshaft.

Tighten down central bolt (1).

Tightening torque: 11 21 1AZ .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Fig 20: Inserting Central Bolt With Crankshaft Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Crank engine twice.

Check TIMING .

Replace front CRANKSHAFT SEAL .

Assemble engine.
