41 12 654 Replacing Right Luggage Compartment Floor (Rear Side Panel And Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

The following new body parts are required:

(1) Luggage compartment floor, right

Fig 1: Identifying Right Luggage Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

Removal

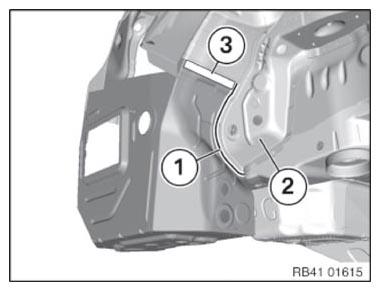

Mark severance cut (1) next to reinforcement (2) and disconnect.

Open welded connections in area (3).

Fig 2: Identifying Cutting Line, Reinforcement, And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

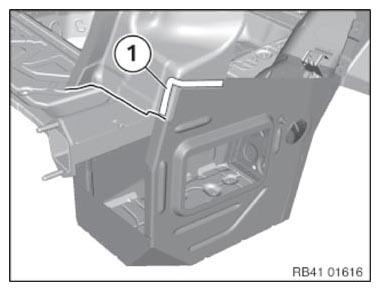

Open welded connections in area (1).

Fig 3: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1) and remove luggage compartment floor (2).

NOTE: Schematic diagram without D-pillar inner panel for better overview.

Fig 4: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cut on luggage compartment floor in accordance with severance cut on vehicle + 15 mm for extra material and cut.

Adjust luggage compartment floor in combination with side panel and tail panel to fit.

Prepare luggage compartment floor for joining by welding.

NOTE: The luggage compartment floor is completely joined using the welding method when the side panel and/or tail panel are not replaced at the same time.

Installation

Install new part and weld.
