84 10 011 Replacing emergency battery for Telematic Communication Box (TCB)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the INFORMATION ON PROTECTION FROM ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

Remove the TELEMATIC COMMUNICATION BOX (TCB) .

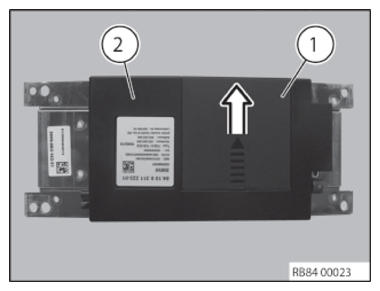

Open lid (1). on TCB (2) in direction of arrow.

Fig 1: Opening TCB Lid

Courtesy of BMW OF NORTH AMERICA, INC.

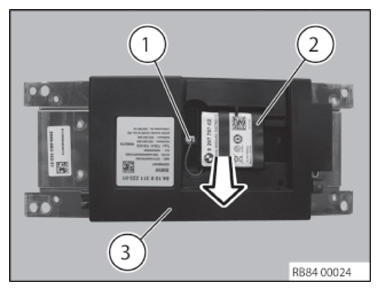

Disconnect connector (1).

Remove emergency battery (2) from TCB (3).

Fig 2: Removing Emergency Battery From TCB

Courtesy of BMW OF NORTH AMERICA, INC.
