72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear window shelf . See 51 46 001 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR STORAGE SHELF or 51 46 018 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR STORAGE SHELF WITH ROLLER SUNBLIND

Release screw (1).

Tightening torque 72 11 21AZ .

Installation:

End fitting is coded against incorrect assembly.

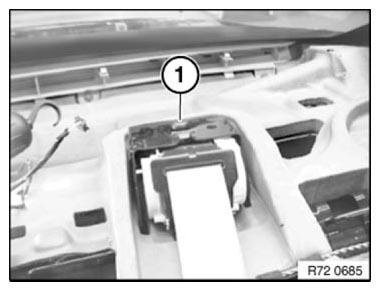

Fig 1: Identifying Rear Center Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 72 11 20AZ .

Remove automatic reel with anchor fitting.

Installation:

Automatic reel is coded against incorrect installation.

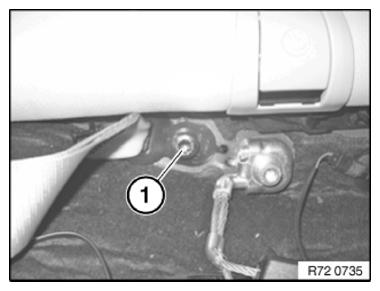

Fig 2: Identifying Automatic Reel With Anchor Fitting Nut

Courtesy of BMW OF NORTH AMERICA, INC.
