65 50 170 Removing and installing/replacing cover for Central Information Display (CID, JC)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 460

NOTE: These repair instructions apply to the Central Information Display (CID) of the manufacturer Johnson Controls (JC).

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove CENTRAL INFORMATION DISPLAY .

Release screws (1).

Tightening torque 65 50 2AZ

NOTE: To tighten screws, use special tool 00 9 460 .

Remove rear cover (2) from Central Information Display (3).

Installation note:

Make sure rear cover (2) is correctly seated on Central Information Display (3).

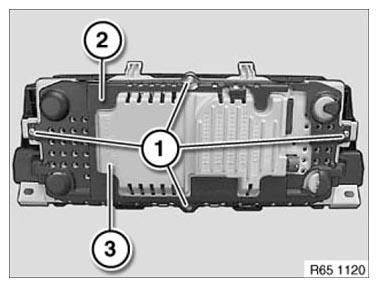

Fig 1: Identifying Rear Cover At Central Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage or scratch the display!

Carefully disconnect the plug connection (1) (only F01, F02, F03, F04 ).

Carefully raise latch mechanisms (2) and remove Central Information Display (3) from Central Information Display cover (4).

Installation note:

Make sure latch mechanisms (2) are heard to click into place.

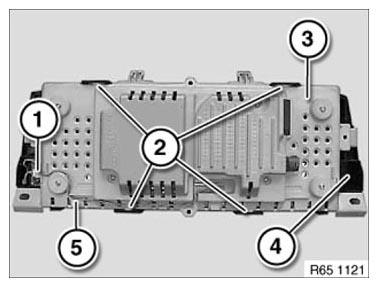

Fig 2: Identifying Latch Mechanisms And Central Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rear Central Information Display cover (4) is correctly seated on Central Information Display (3).

Ensure correct cable routing in guide (5).

IMPORTANT: Before/after assembly, cover is bolted to the Central Information Display, correct installation position must first be checked!

Installation note:

Before connecting the screw connection, check whether latch mechanisms marked with an arrow are correctly seated.

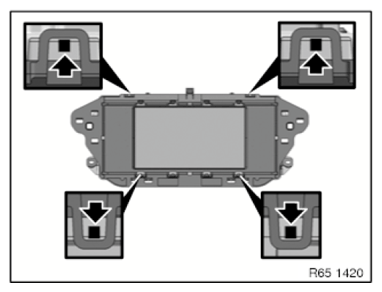

Fig 3: Locating Rear Central Information Display Cover Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before connecting the screw connection, check all-round rim at the places marked with an arrow.

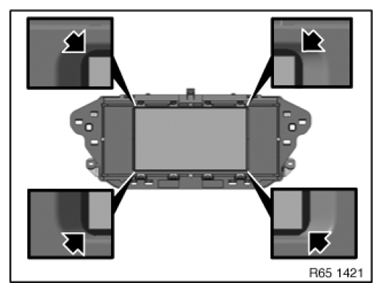

Fig 4: Locating All-Round Rim

Courtesy of BMW OF NORTH AMERICA, INC.
