65 81 060 Removing and installing/replacing outside temperature sensor (S63)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Remove FRONT UNDERBODY PROTECTION .

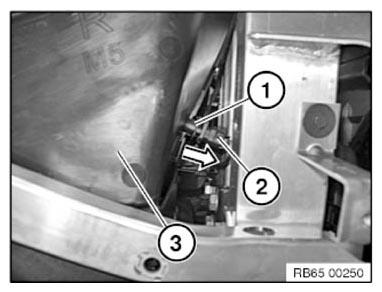

Unclip outside temperature sensor (13) from air duct in direction of arrow and pull out.
Unlock and disconnect plug connection (2) and remove outside temperature sensor (1).
Installation note:
Make sure outside temperature sensor (1) is correctly latched in air duct (3).
