66 33 008 Removing and installing/replacing park assist control unit

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT STORAGE COMPARTMENT .

NOTE: Only with 24V steering:
Remove TOP COVER FROM TAIL PANEL .

Unscrew nuts (1).

Remove auxiliary battery (2) including holder from the work area.

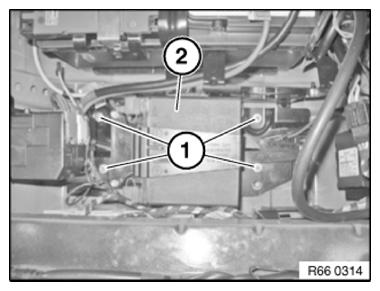

Fig 1: Identifying Auxiliary Battery Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nuts (1).

Remove control unit holder (2) from tail panel trim.

Remove park assist control unit (3) from holder (2).

Unlock plug connection (4) and disconnect.

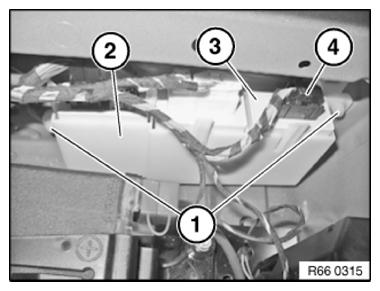

Fig 2: Identifying Control Unit Holder, Tail Panel Trim, Park Assist Control Unit, Holder And Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
