66 20 535 Removing and installing/replacing rear right ultrasonic sensor

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Trim panels can vary depending on engine version.

Lever out expanding rivets (1).

Unfasten screws (2).

Remove trim (3).

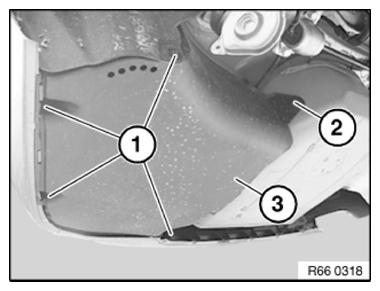

Fig 1: Identifying Trim, Expanding Rivets And Screws

G09929729

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and plastic nuts (2).

Remove right rear cover.

Fig 2: Identifying Right Rear Cover, Screws And Plastic Nuts

G09929740

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Ultrasonic transducers (3) can be reached from below with bumper installed.

Unlock plug connection (1) and disconnect. Unlock latch mechanisms (2) and pull ultrasonic transducer (3) out of bracket.

Installation note:

Before installation of ultrasonic sensor (3) on wiring harness, clean plug connection!

Retaining tabs (2) must not be damaged!

Make sure ultrasonic sensor is securely seated.

Fig 3: Identifying Plug Connection, Tabs And Ultrasonic Transducer

G06886529

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 4: Identifying Rubber Ring And Ultrasonic Sensor

G04728003

Courtesy of BMW OF NORTH AMERICA, INC.
