63 13 080 Removing and installing/replacing left turn indicator insert (to 07/13)

Release screws (1).

Remove lid (2) in direction of arrow.

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

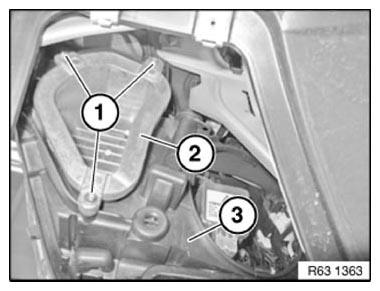

Release screws (1).

Tightening torque 63 12 6AZ .

Remove turn indicator insert (2) from headlight (3).

Fig 2: Identifying Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

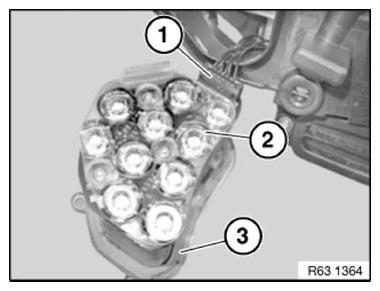

Unlock plug connection (1) on turn indicator insert (2) and disconnect.

Installation note:

Ensure seal (3) is seated correctly.

Fig 3: Identifying Plug Connection And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert (2) via vehicle diagnosis.

• Service functions
• Body
• Lights
• Initialize the headlight driver module and teach in LEDs in headlight
