63 13 080 Removing and installing/replacing left turn indicator insert (from 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

Release screws.

Tightening torque 63 12 6AZ .

Remove turn indicator insert (1) from headlight.

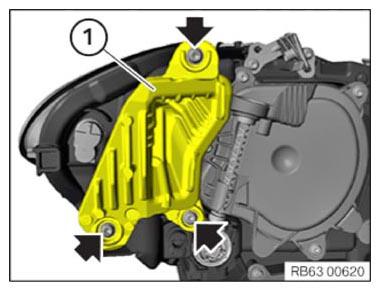

Fig 1: Locating Screws Of Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on turn indicator insert (3) and disconnect.

Installation note:

Ensure gasket (2) is fitted correctly.

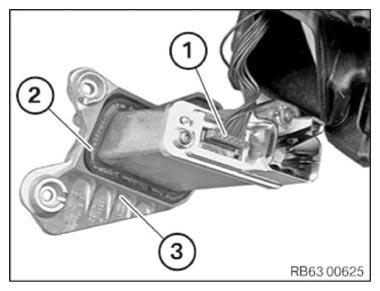

Fig 2: Identifying Plug Connection And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
