63 21 101 Replacing sealing frame for left or right rear light (on side panel)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove and install left or right REAR LIGHT

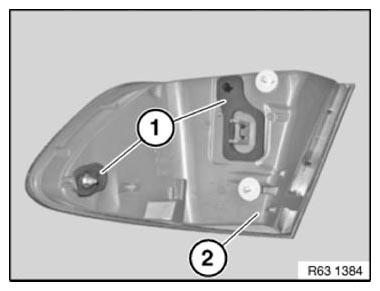

Detach sealing frame (1) from rear light (2).
Installation:
Make sure sealing frame (1) is correctly bonded all round on rear light (2).
