63 99 273 Replace bulb for front left turn indicator (xenon headlight from 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

NOTE: Front wheel removed for purposes of clarity.

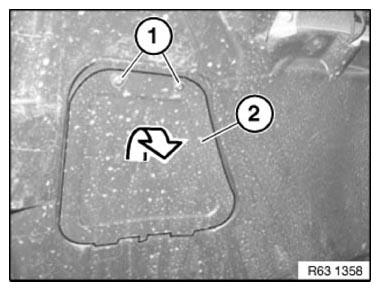

Release screws (1).

Remove lid (2) in direction of arrow.

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) approx. 30° anticlockwise and remove from headlight (2).

Fig 2: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb with socket (1) in direction of arrow and remove from bulb holder (2) toward the top.

Installation note:

Check that bulb with socket (1) and sealing ring (3) on bulb holder (2) are correctly seated.

Note BULB TYPE .

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
