63 99 160 Replacing bulb for front left turning lights

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove cover (1) from left engine compartment lid seal mounting.

Fig 1: Identifying Front Light Cover

G06886140

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Headlight shown removed for purposes of clarity.

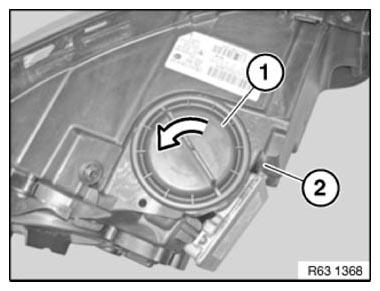

Turn cover (1) on headlights (2) in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check seal.

Replace protective cap (1) if necessary.

Fig 2: Turning Cover On Headlights

G09929126

Courtesy of BMW OF NORTH AMERICA, INC.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

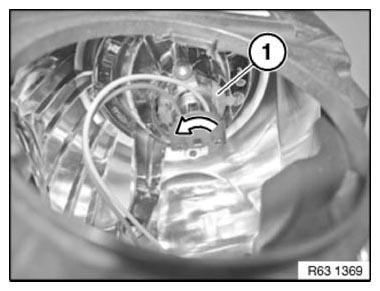

Turn bulb (1) in direction of arrow and remove.

Fig 3: Turning Bulb

G09929127

Courtesy of BMW OF NORTH AMERICA, INC.

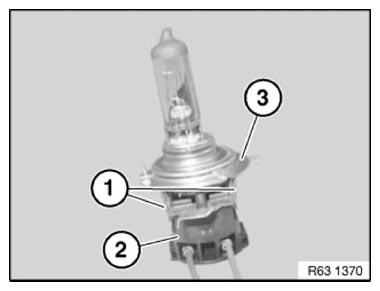

Unlock clamps (1) and disconnect plug connection (2).

Remove bulb (3).

Replacement:

Note BULB TYPE .

Fig 4: Identifying Clamps, Plug Connection And Bulb

G09929128

Courtesy of BMW OF NORTH AMERICA, INC.
