63 99 145 Replacing bulb for front left side light/daytime driving lights (LED module) (xenon headlight)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

Release screws (1).

Lift out LED module (2).

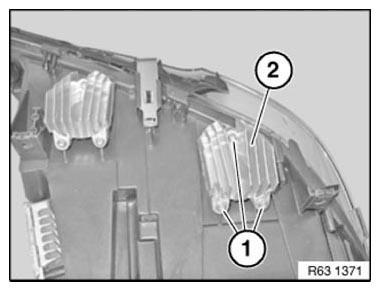

Fig 1: Identifying LED Module And Screws

G09929122

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove LED module (2).

If necessary, remove sealant residue from headlight housing.

Installation note:

Ensure LED module (2) is correctly positioned in headlight housing.

If necessary, replace sealant for LED module (2).

Note BULB TYPE .

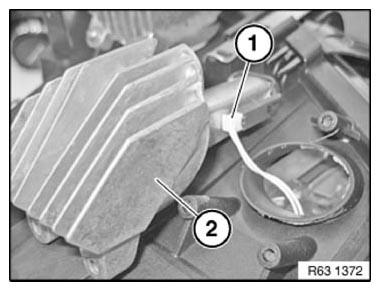

Fig 2: Identifying Plug Connection And LED Module

G09929123

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Always replace LED modules (2) as a pair .

For the LED module (2) to function properly, it is obligatory to use an adapter cable (1) .

Attach included adapter cable (1) to LED module (2) and connect to headlight using cable.

Ensure adapter cable (1) is positioned properly, do not trap cable.

As far as possible, do not touch sealant (3) on new LED module (2).

Note BULB TYPE .

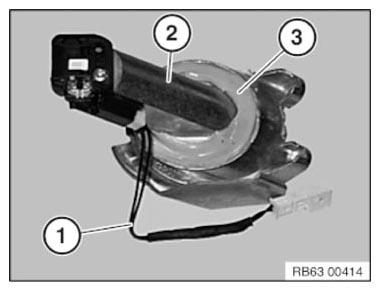

Fig 3: Identifying LED Modules And Adapter Cable

G09929124

Courtesy of BMW OF NORTH AMERICA, INC.
