63 31... Removing and installing/replacing front left or right top door trip panel fibre optic conductor

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary work:

Remove FRONT DOOR TRIM PANEL
Work station with cleaner working surface

Top fibre optic conductor below decorative strip

Use special tool 64 1 020 to unclip fibre optic conductor (2) from door trim panel (1) at the fastening clips (3) with light rotating movement.

Installation note:

Make sure fibre optic conductor (1) correctly locks at fastening clips (3).

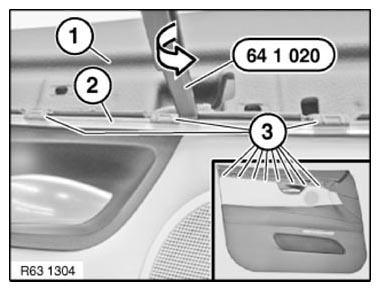

Fig 1: Unclipping Fibre Optic Conductor From Door Trim Panel

G09929191

Courtesy of BMW OF NORTH AMERICA, INC.

Pull LED module (1) out of bracket (2).
Carefully pull LED module (1) from optical fibre (2).

Installation note:

LED module (1) must lock into position (light distribution).

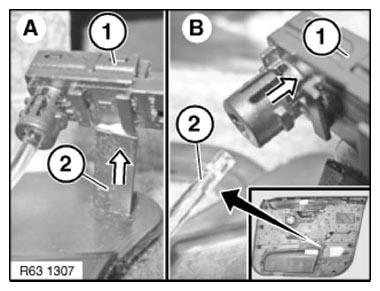

Fig 2: Pulling LED Module Of Bracket

G09929192

Courtesy of BMW OF NORTH AMERICA, INC.

Feed fibre optic conductor (1) out of door trim panel (2) in direction of arrow and remove.

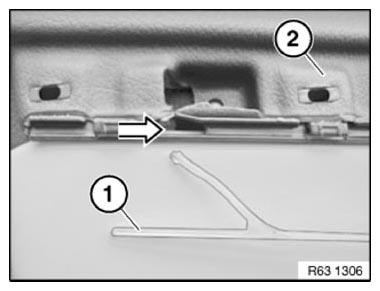

Fig 3: Removing Fibre Optic Conductor Of Door Trim Panel

G09929193

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

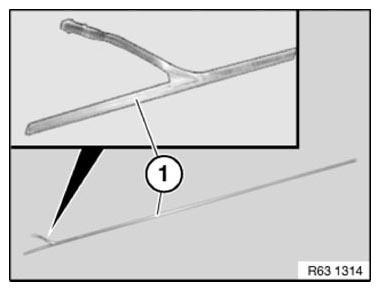

Fig 4: Identifying Fibre Optic Conductor

G09929194

Courtesy of BMW OF NORTH AMERICA, INC.
