63 31... Removing and installing/replacing fibre optic conductor of front door trim panel (storage compartment)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary work:

Remove FRONT DOOR TRIM
Work station with cleaner working surface

Fibre optic conductor at bottom of storage compartment:

IMPORTANT: Carefully pull fibre optic conductor (1) out of LED module (2) from storage side.
(See next work step.)
LED must remain plugged into holder (3). (Risk of damage).

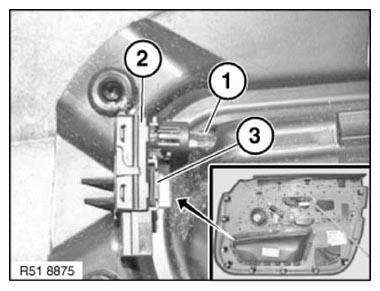

Fig 1: Identifying Compartment Side Fibre Optic Conductor And LED Module

Courtesy of BMW OF NORTH AMERICA, INC.

Grasp the end of the fibre optic conductor (1) with finger and unclip in direction of arrow.
Carefully pull fibre optic conductor (1) from LED module in direction of arrow.

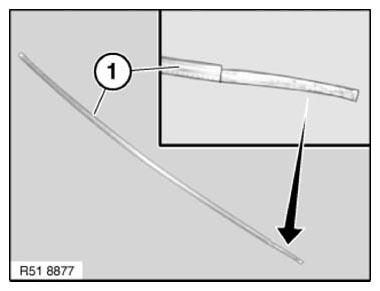

Fig 2: Pulling Fibre Optic Conductor
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

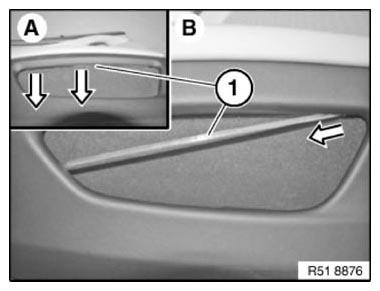

Fig 3: Identifying Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
