63 31... Removing and installing/replacing fibre optic conductor of door panel, top rear

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

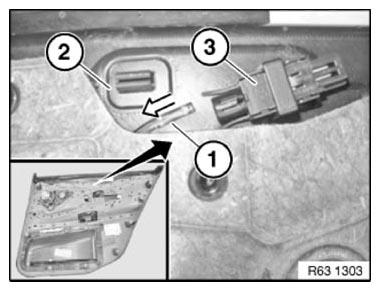

Carefully detach fibre optic conductor (1) from LED module (3) (retainer).

Installation note:

LED-module (3) must lock into position (light distribution).

Fig 1: Detaching Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

Upper fibre optic conductor:

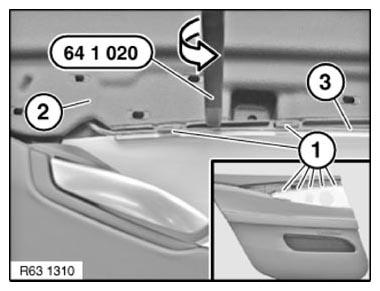

Use special tool 64 1 020 to unclip fibre optic conductor (3) from retaining clips (1) in door panel (2) and remove.

Installation note:

The fibre optic conductor (3) must be securely locked in the retaining clips (1) on the door trim panel (2).

Fig 2: Unclipping Fibre Optic Conductor From Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

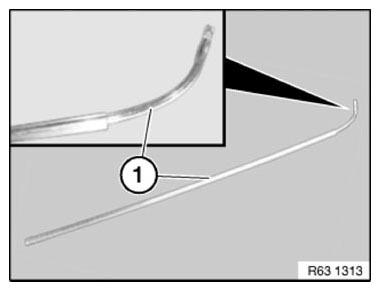

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

Fig 3: Identifying Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
