63 31 180 Replacing LED for front door trim panel light (left or right)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel

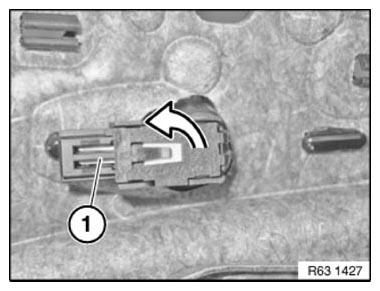

Turn LED for front door trim (1) 45° clockwise in the direction of the arrow and lift slightly.

Fig 1: Turning LED Front Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

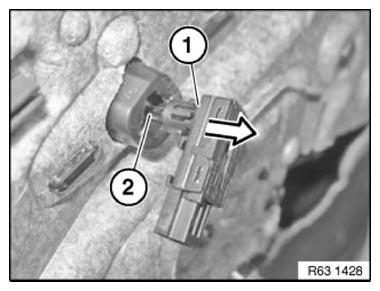

Detach front door trim LED (1) from optical fibre (2) in direction of arrow from side trim panel.

Installation note:

Make sure LED for front door trim panel (1) is correctly seated.

Fig 2: Detaching Front Door Trim LED

Courtesy of BMW OF NORTH AMERICA, INC.
