63 11 845 Replacing left LED fan (inner)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 296 785

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

Release screws (1) and remove protective cap (2).

Tightening torque 63 11 6AZ .

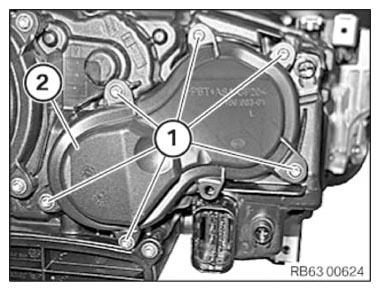

Fig 1: Identifying Protective Cap And Screws

G09929082

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs on protective cap (1) must not be damaged or missing.

Gasket (2) must not be damaged and must be installed free from grease.

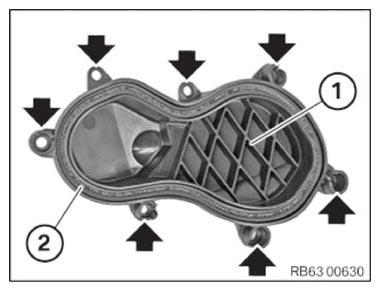

Fig 2: Locating Retaining Tabs On Protective Cap

G09929083

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2) with special tools 2 296 785 and remove fan (3).

Tightening torque 63 11 6AZ .

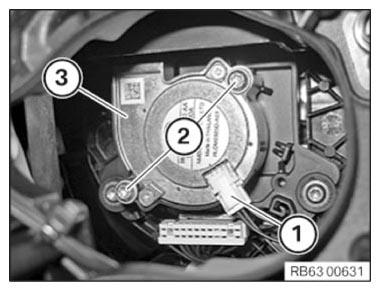

Fig 3: Identifying Plug Connection, Screws And Fan

G09929084

Courtesy of BMW OF NORTH AMERICA, INC.
