63 11 840 Replacing left LED fan left (outer)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

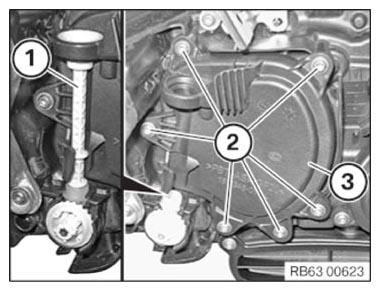

Ease adjusting pin (1) up out of adjusting element and remove.

Release screws (2) and remove protective cap (3).

Tightening torque 63 11 6AZ .

Fig 1: Identifying Protective Cap, Screws And Pin

G09929085

Courtesy of BMW OF NORTH AMERICA, INC.

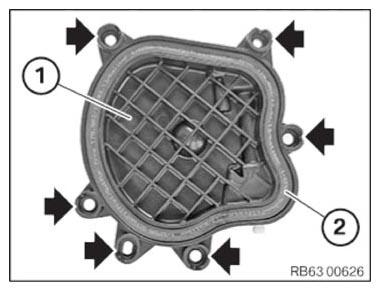

Installation note:

Retaining tabs on protective cap (1) must not be damaged or missing.

Gasket (2) must not be damaged and must be installed free from grease.

Fig 2: Locating Retaining Tabs On Protective Cap

G09929086

Courtesy of BMW OF NORTH AMERICA, INC.

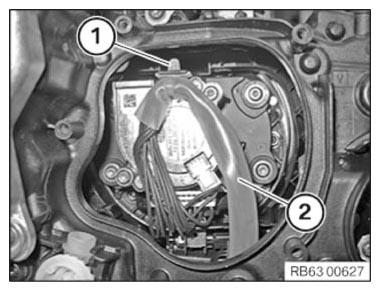

Unlock and remove cable clip (1) with long-nose pliers.

Lay cable (2) downwards.

Fig 3: Identifying Lay Cable And Clip

G09929087

Courtesy of BMW OF NORTH AMERICA, INC.

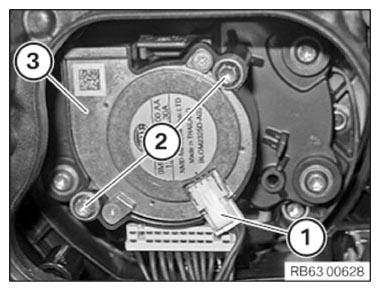

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove fan (3).

Tightening torque 63 11 5AZ .

Fig 4: Identifying Plug Connection, Screws And Fan

G09929088

Courtesy of BMW OF NORTH AMERICA, INC.
