63 11 820 Replacing LED module for cornering light, left (07/13 onward)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release latch mechanism and pull trim (1) slightly forward.

Unfasten screws (2).

Tightening torque 63 11 3AZ .

Remove LED module (3).

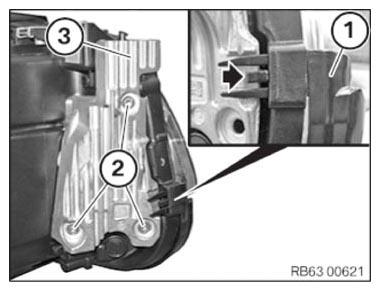

Fig 1: Identifying LED Module, Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove LED module (2).

If necessary, remove sealant residue from headlight housing.

Installation note:

Ensure LED module (2) is correctly positioned in headlight housing.

If necessary, replace sealant (3) for LED module (2).

As far as possible, do not touch sealant (3) on new LED module (2).

Fig 2: Identifying Plug Connection And LED Module

Courtesy of BMW OF NORTH AMERICA, INC.
