63 11 550 Removing and installing/replacing the headlight driver module
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
IMPORTANT:
Follow NOTES ON PROTECTION FROM ELECTROSTATIC DISCHARGE
!

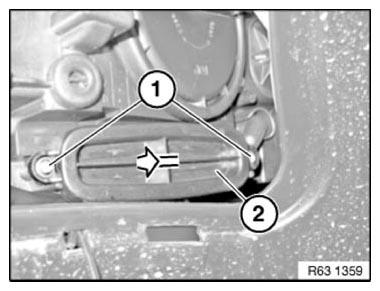

Release screws (1).
Remove lid (2) in direction of arrow.
Release screws (1).
Tightening torque 63 12 3AZ .
Pivot out the headlight driver module (2) slightly in direction of arrow.

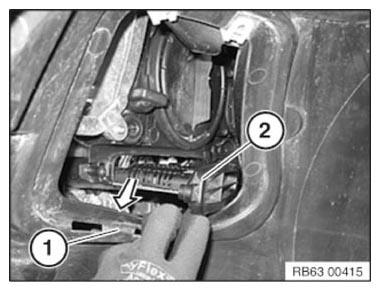

Pull the wheel arch panel (1) downwards slightly.
Remove headlight driver module (2) in direction of arrow.
Installation note:
Ensure gasket (1) is fitted correctly during installation.
Gasket (1) must not be damaged and must be installed free from grease.
Replacement:
Teach in headlight driver module (1) via vehicle diagnosis.
- Service functions
- Body
- Lights
- Initialize the headlight driver module and teach in LEDs in headlight
- If applicable, carry out encoding
