63 17 200 Removing and installing (replacing) left headlight for target illumination

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job item does not include adjustment of the headlight for target illumination!
ADJUSTMENT OF HEADLIGHT FOR TARGET ILLUMINATION must be carried out after removal and installation!

IMPORTANT: Follow notes for HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS)

Necessary preliminary work:

Remove ornamental grille in bumper panel . See 51 11 183 REMOVING AND INSTALLING/REPLACING ORNAMENTAL GRILLE FOR BUMPER TRIM (SIDE) or 51 11 185 REMOVING AND INSTALLING/REPLACING ORNAMENTAL GRILLE FOR BUMPER PANEL ON THE SIDE (M AERODYNAMICS PACKAGE)

Release screws (1).

Tightening torque 63 12 7AZ .

Remove the headlight for targeted illumination (2) from the holder (3) in direction of arrow.

Unlock associated plug connection and disconnect.

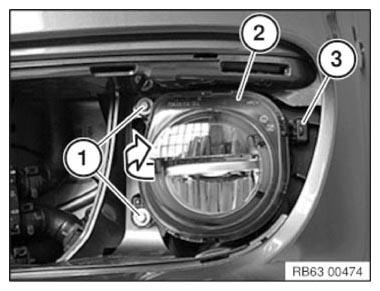

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
Adjust headlights for targeted illumination . See 63 10 022 ADJUSTING DYNAMIC LIGHT SPOT HEADLIGHTS (WITH HEADLIGHT ADJUSTMENT AID) , 63 10... ADJUST HEADLIGHTS FOR TARGETED ILLUMINATION (DYNAMIC LIGHT SPOT) (WITH HEADLIGHT ADJUSTMENT DEVICE MAHA LITE 3 AS OF SOFTWARE VERSION V 0.78...) or 63 10... ADJUSTING DYNAMIC LIGHT SPOT HEADLIGHT (WITH NON-ELECTRONIC HEADLIGHT ADJUSTMENT DEVICE)
