63 17 070 Removing and installing left fog light (M Aerodynamic package)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)
Necessary preliminary tasks:
- Remove ORNAMENTAL GRILLE for the bumper panel on the side.

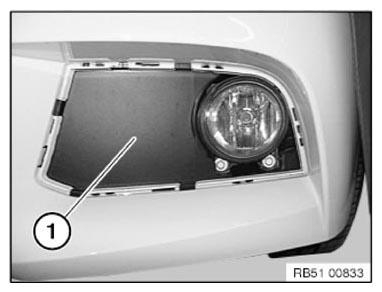

Disengage cover (1) towards front.

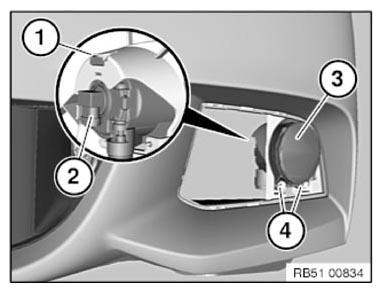

Release latch mechanism (1).
Unfasten plug connection (2) and disconnect.
Release screws (4).
Tightening torque 63 12 7AZ .
Remove fog light towards front.
Installation note:
Catch (1) must not be damaged.
Replacement:
If necessary, convert bulb.
Note BULB TYPE .
