63 14 120 Removing and installing or replacing rear reflector

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

NOTE: Illustrations depict removal of left rear reflector. The right rear reflector is removed in the same manner as the left rear reflector.

Carefully unclip rear reflector (1) on the right side using special tool 00 9 327 .

Remove rear reflector (1) toward the rear from rear bumper panel (2).

Fig 1: Unclipping Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.

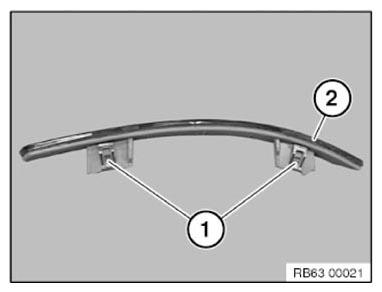

Installation note:

Clamps (1) must not be damaged.

Make sure rear reflector (2) is correctly seated.

Fig 2: Identifying Rear Reflector And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
