63 25 000 Removing and installing/renewing auxiliary brake light

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

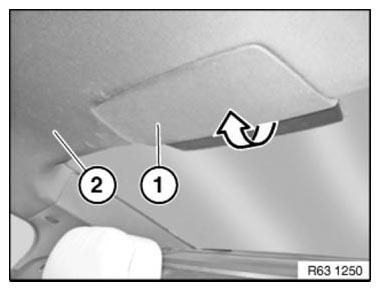

Remove supplementary brake light cover (1) in direction of arrow from molded roofliner (2).

Fig 1: Removing Supplementary Brake Light Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

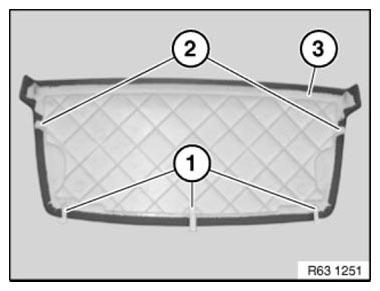

Guides (1) and catches (2) must not be damaged.

Make sure cover is correctly seated on supplementary brake light (3).

Fig 2: Identifying Catches, Supplementary Brake Light And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

If necessary, unclip plug connections (2) on supplementary brake light (4).

Unlock slide (3) on both sides and remove supplementary brake light (4) in direction of arrow from rear window (5).

Installation:

Make sure supplementary brake light (4) is correctly positioned in rear window (5).

Fig 3: Removing Supplementary Brake Light From Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
