25 11 111 Replacing Gearshift Rod Joint

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove propeller shaft . See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (INSERTED - FLEXIBLE DISC AT REAR) or 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (CONSTANT-VELOCITY JOINT) .

Lift off retainer (1).

Detach gearshift rod (2).

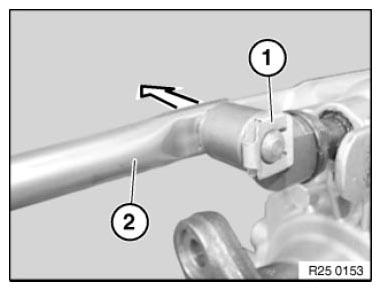

Fig 1: Detaching Gearshift Rod

G06905013

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grease gearshift rod.

Grease, refer to OPERATING FLUIDS .

IMPORTANT: Retaining clip must interlock captively with retaining web (1) behind gearshift rod pin.

Fig 2: Retaining Web

G05778020

Courtesy of BMW OF NORTH AMERICA, INC.

Lever spring circlip (1) out of groove and push a little towards rear.

Press cylindrical pin (2) upwards/downwards out of gearshift rod joint and remove gearshift rod joint.

Installation note:

Grease ball of gearshift shaft.

Grease, refer to OPERATING FLUIDS .

Replace spring circlamp (1).

Fig 3: Removing Gearshift Rod Joint

G04755564

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber ring (1) in gearshift rod joint (2) and replace if necessary.

Fig 4: Rubber Ring And Gearshift Rod Joint

G04748970

Courtesy of BMW OF NORTH AMERICA, INC.
