25 11 000 Removing And Installing Gearshift Lever

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BUTTON for gearshift lever.
Remove propeller shaft . See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (INSERTED - FLEXIBLE DISC AT REAR) or 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (CONSTANT-VELOCITY JOINT) .

Undo retaining clip (1).

Remove gearshift rod (2).

Installation note:

Grease gearshift rod pin.

Fig 1: Retaining Clip And Gearshift Rod

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Retaining clip must interlock captively with retaining web (1) behind gearshift rod pin.

Fig 2: Retaining Web

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock bearing journal (1) in direction of arrow and remove.

Installation note:

Grease bearing journal.

Grease, refer to OPERATING FLUIDS .

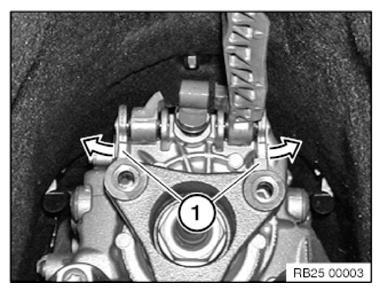

Fig 3: Unlocking Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Lever support bearing (1) out of bracket.

Fig 4: Removing Support Bearing Of Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Feed U-type bellows (2) with gearshift arm (1) and gearshift lever (3) carefully out of body aperture toward the top.

IMPORTANT: The PVC guide inserted in the U-type bellows for the body aperture breaks easily during removal and installation.

Fig 5: U-type bellows, Gearshift Lever And Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release U-type bellows bead (1) from gearshift arm up.

Press retaining lugs (2) of gearshift lever mount and release gearshift lever (3) from gearshift arm.

Installation note:

Pull U-type bellows bead from below completely over gearshift arm cup.

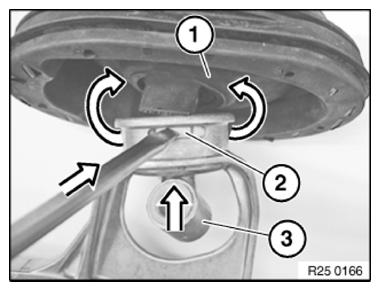

Fig 6: Pressing Retaining Lugs Of Gearshift Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

GREASE gearshift lever ball.

Fit mount on gearshift arm cup.

Align retaining lugs of mount to recesses in cup (crossways to direction of travel).

Press gearshift arm with mount downwards until mount audibly engages (if necessary, use pressing-in tool).

Fig 7: Pressing Gearshift Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Press U-type bellows lips (1) into the body aperture and U-type bellows lips (2) into the sound insulation.

Make sure that the arrow on the U-type bellows is seated in direction of travel.

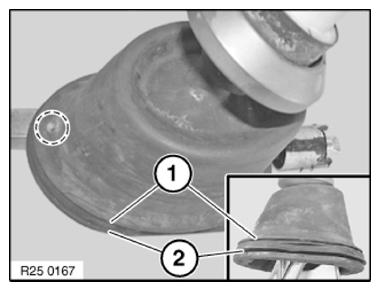

Fig 8: U-Type Bellows And Lips

Courtesy of BMW OF NORTH AMERICA, INC.
