37 14 566 Removing and installing/replacing control unit for Vertical Dynamics Control (EDC)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove ignition key
Disconnect NEGATIVE BATTERY CABLE
Remove SIDE TRIM PANEL from footwell on right A-pillar

Fold carpet in footwell at front right to one side.

Unscrew nuts (1).

Tightening torque 37 14 6AZ .

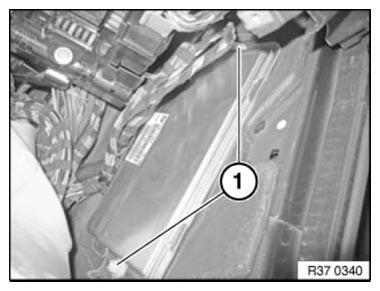

Fig 1: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) in direction of arrow and disconnect.

Remove control unit.

Fig 2: Unlocking Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Replacement only: Carry out PROGRAMMING/ENCODING
