52 26 200 Removing and installing/replacing rear panel on right rear seat back

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Tilt backrest forwards.

Lever out backrest cover welt from around the backrest frame with special tool 00 9 317 .

Fig 1: Removing Backrest Cover Welt Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear panel (2) with flat scraper (1) from rear seat back.

Installation:

Comply with instructions issued by manufacturer of universal spray adhesive.

Apply universal spray adhesive to rear panel and rear seat back.

Fit and align rear panel within the air drying time (see manufacturer's instructions).

Observe and adhere to curing time to prevent rear panels from slipping.

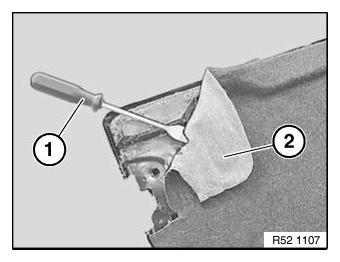

Fig 2: Detaching Rear Panel Using Flat Scraper From Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
