52 26 032 Removing and installing/replacing cup holder in armrest for rear seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER ARMREST COVER

Unclip trim (1) from center armrest cover in the marked area.

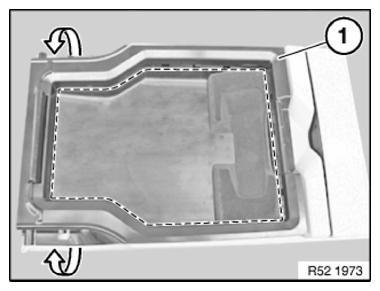

Fig 1: Removing Trim From Center Armrest Cover In Marked Area

G09928223

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs must not be damaged.

Replace defective trim for center armrest cover.

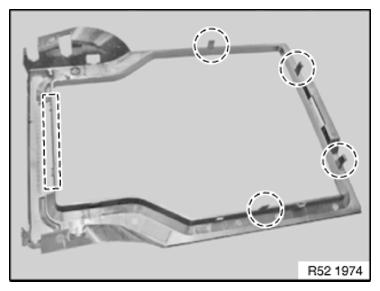

Fig 2: Identifying Armrest Cover Trim Retainers

G09928224

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip drink holder (1) in the marked area (2).

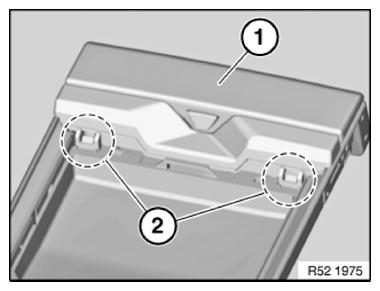

Fig 3: Identifying Drink Holder Marked Area

G09928225

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right drink holders (1) from center armrest with plastic wedge.

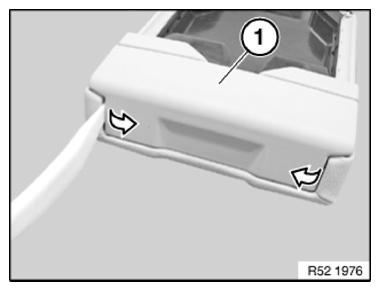

Fig 4: Removing Left/Right Drink Holders From Center Armrest With Plastic Wedge

G09928226

Courtesy of BMW OF NORTH AMERICA, INC.
